Savana PTFE filter

Point of tool and point-of-dispense solvent, DI water and dilute acid/base filter with good contaminant retention performance

APPLICATIONS
  • Industry: Data Storage, Flat Panel Display, Bulk Chemical, LED
  • Process: Bulk Chemical Delivery, HDD Assembly – Cleaning, HGA/HSA Assembly – Cleaning, Chemical, Cleaning, CDA, Bulk Gas Delivery
  • Chemistry: Solvents, Aqueous Acids, Bases, Detergents, DI Water
  • Installation Point: Point of Tool, Bulk

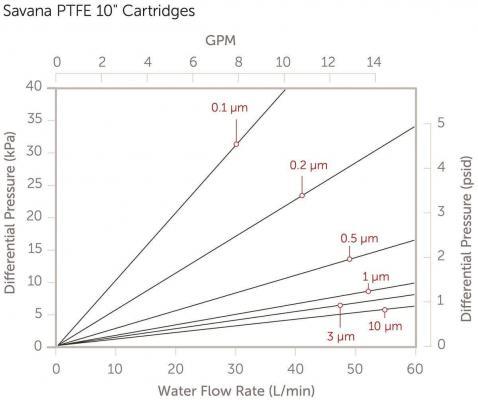

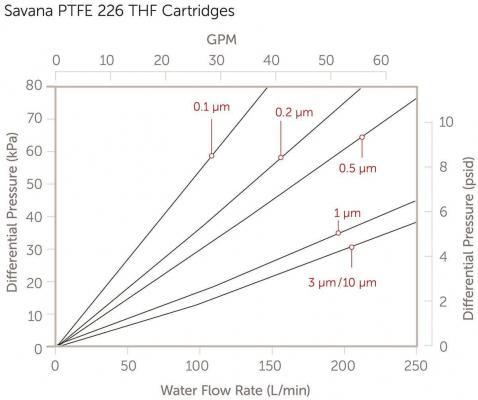

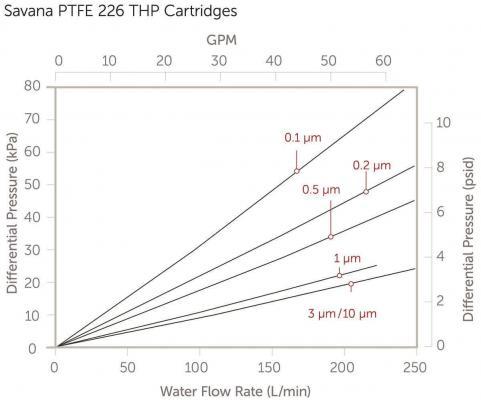

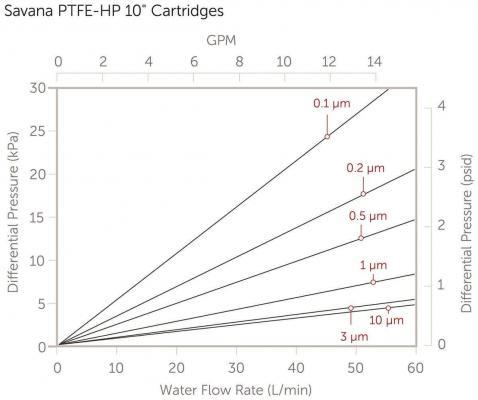

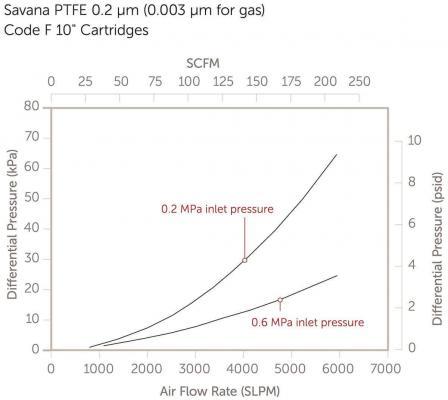

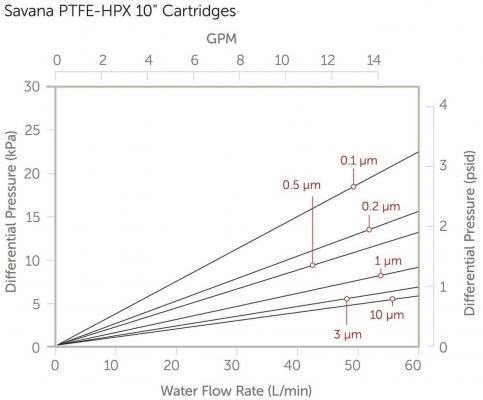

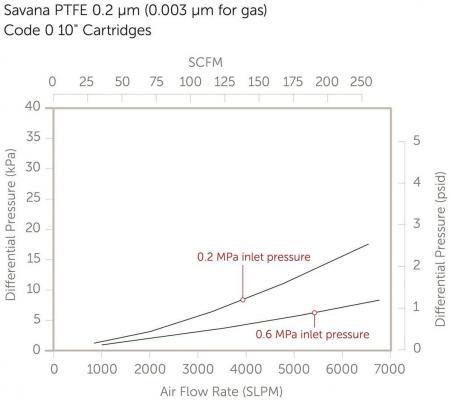

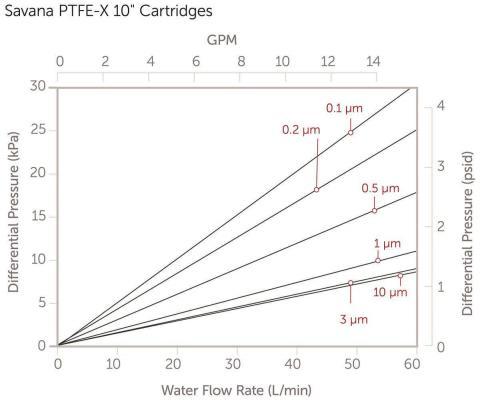

PERFORMANCE DATA

SPECIFICATIONS

Materials

Mebrane Hydrophobic PTFE /support PP 7 Sleevecaps/core PP /Orings  EPDM, FKM, E-FKM

Retention rating

0.1, 0.2, 0.5, 1, 3, 10 µm

Maximum operating conditions

Maximum forward differential pressure 0.40 MPa (4.0 bar, 58 psi) @ 25°C (77°F)

Maximum reverse differential pressure 0.30 MPa (3.0 bar, 44 psi) @ 25°C (77°F)

Maximum operating temperature

90°C (for 70 mm diameter cartridge, in water)



Savana® PTFE can be sterilized by autoclaving up to 50 cycles at 125°C or sterilized by steam-in-place up to 50 cycles at 135°C for 30 minutes at less than 0.3 bar differential pressure.
